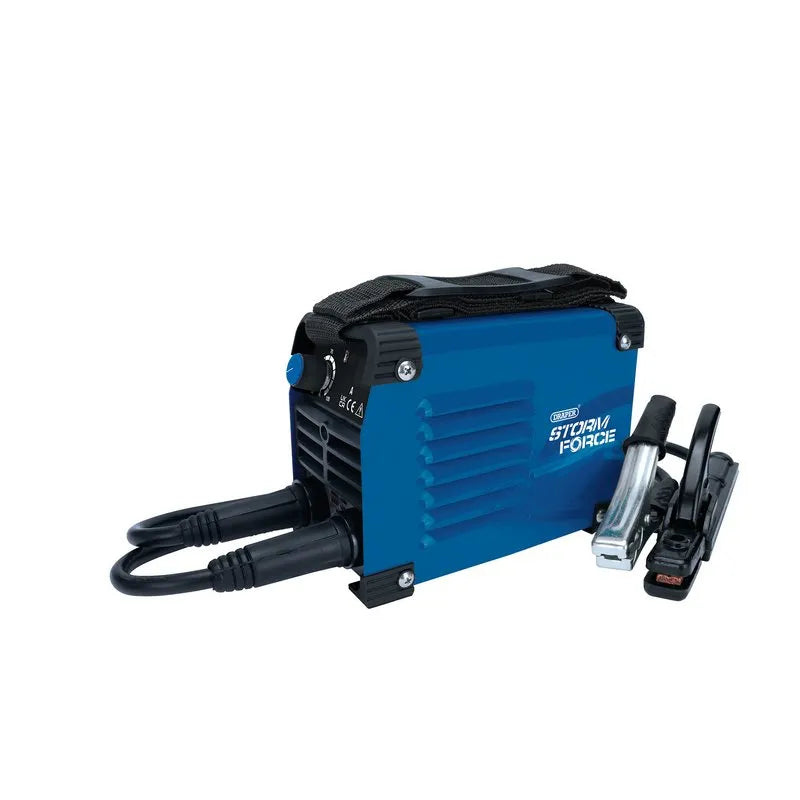

Draper Storm Force MMA Inverter Welder 120 Amp
Finance Options
1/3
Product Highlights
- Amp: 120
- Feature: Hot Start
- Feature: Thermal Cut out
Draper Storm Force MMA Inverter Welder 120 Amp is backordered and will ship as soon as it is back in stock.
Notify Me
Simply enter your email address and we will notify you when this product is back in stock
Pickup currently unavailable at Moynehall Retail Park
Delivery and Shipping
Delivery and Shipping
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
Return Policy
Return Policy
We offer an exchange or refund on goods purchased online, and returned 14 days after purchase.
Description
Description
Draper Storm Force® MMA Inverter Welder has leading functionality including hot start and anti-stick. This helps ensure excellent ignition and a reliable, smooth and stable arc. Portable and compact design built in a hard plastic case with shoulder strap.
Part No. - NV120A/SF
Rated voltage - 230~50Hz
Input current- 16A
Current range - 20 – 120A
Electrode size - 1.6 – 3.2mm
Dinse Type Socket - 25/10
Degree of protection - IP21S
Cooling - Air (fan)
Insulation class - F
Duty cycle - 35% @ 120A / 100% @ 85A
Weight (Gross/Net/machine only) - 3.4/3.0/2.1kg
HOT START FEATURE
The machine is equipped with a ‘Hot Start’ feature.
A peak of current is delivered when striking the arc.
This gives easy starting the electrodes, especially
when faced with challenging operating conditions, ie;
damp, or ‘difficult to run’ electrodes or an imperfect
workpiece.
ANTI-STICK FEATURE
The machine is equipped with an ‘Anti-Stick’ feature,
which ensures smooth welding and reduces instances of
the electrode becoming stuck to the parent metal.
The machine will automatically reduce the intensity
of the current in order to aid quick and simple
separation of the electrode and parent metal.
DUTY CYCLE
Duty Cycle is a percentage of 10 mins, in which a
machine can operate at a rated load without overheating
and interruption from the thermal cut-out device.
THERMAL CUT-OUT
If welding for extended periods, the thermal cut-out will
activate and the LED indicator will illuminate,
prohibiting use of the machine until sufficiently cool.
