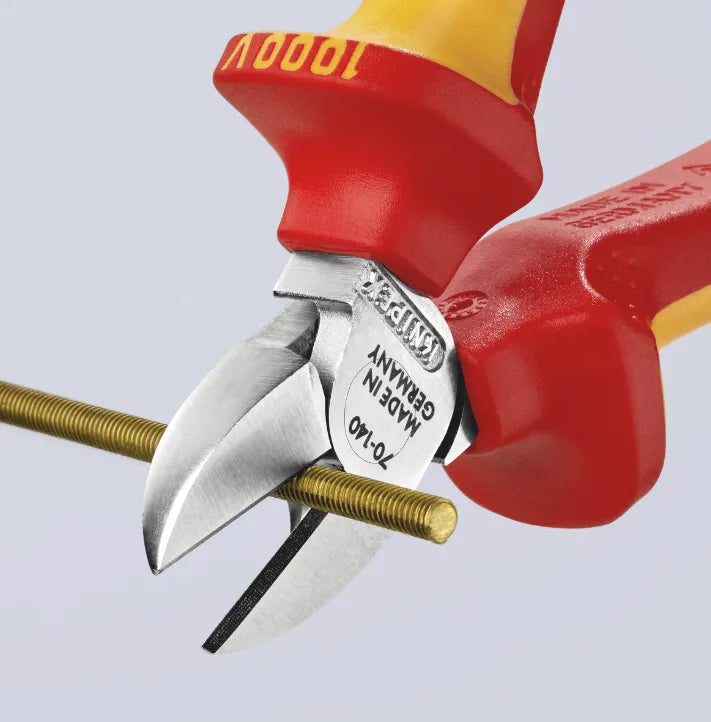

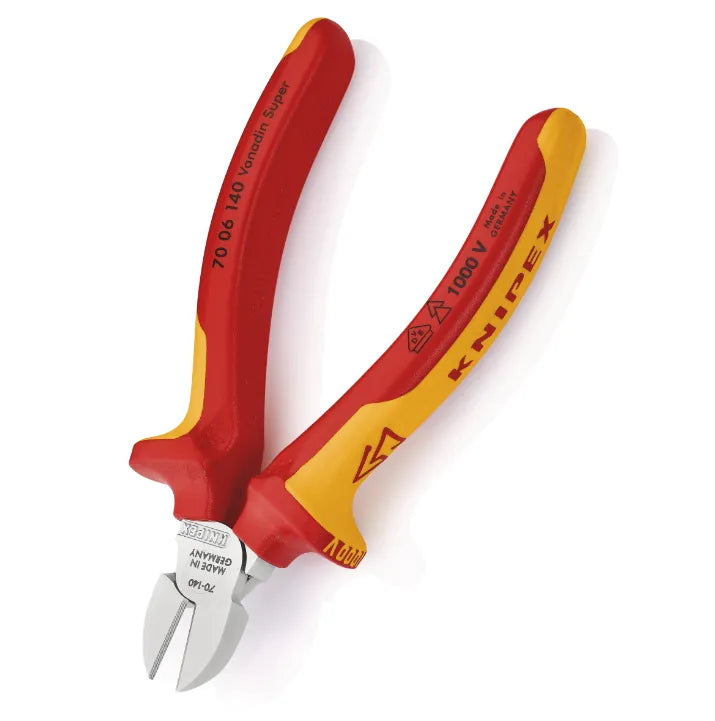

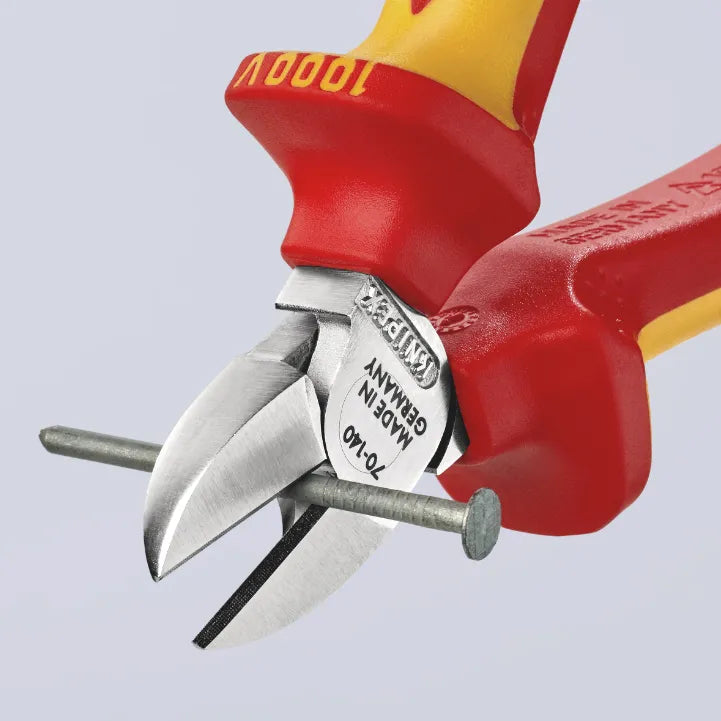

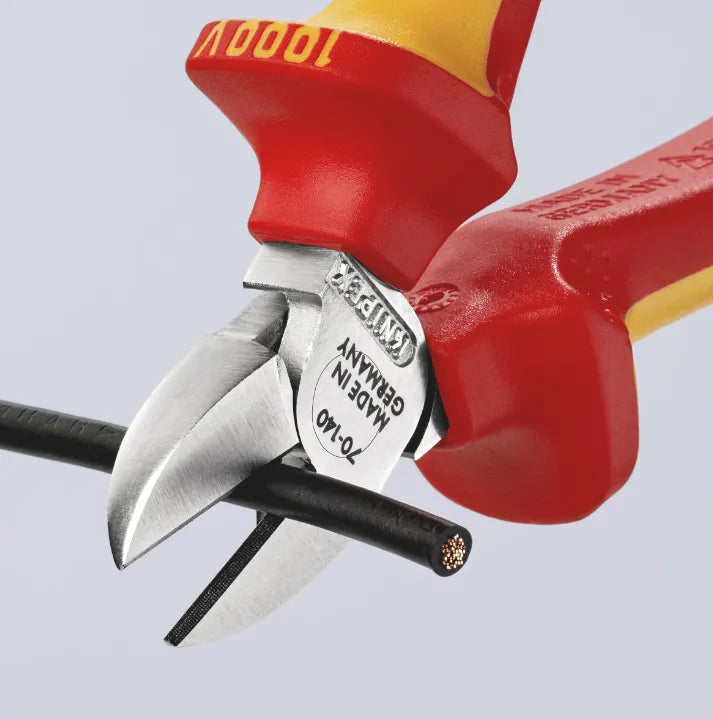

Knipex Diagonal Cutter VDE 1000V 140mm

Knipex Diagonal Cutter VDE 1000V 140mm is a high-quality tool for demanding users. From the shape of the head to the grind and hardness of the cutting edges, these pliers are tailor-made for the diverse cutting tasks in the everyday work of electricians, mechatronics engineers and electronics engineers. The Knipex 7006140SB diagonal cutter is insulated by means of multi-component grips according to the insulation standard IEC 60900 DIN EN 60900. With its cutting performance up to Ø 1.8 mm for hard wire (e.g. wire rope strands) and up to Ø 4.0 mm for soft wire (e.g. copper wire), they are suitable for a wide range of applications. The particularly carefully and precisely machined cutting edges make precise cuts possible even in the case of very fine stranded wires – right down to the cutting edge tips. The quality of a diagonal cutter can be seen in the cut. Knipex diagonal cutters deliver consistently high performance. In addition to the high-quality forged parts made from vanadium electric steel, the most important quality criteria at Knipex include the precise machining of the tool steel manufactured in Germany. The material to be cut is cut cleanly. The length and sharpness of the cutting edges on the Knipex 7001140 are designed for high performance – even in confined spaces. The high quality and hardness of the cutting edges ensure a long service life.

Features:

• The indispensable diagonal cutter for all-round use
• High-quality material and precise workmanship for long service life
• Precision cutting edges for soft and hard wire
• Clean cutting of thin copper wires, also at the cutting edge tips
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Narrow head style for use in confined areas
• With bevel
• Vanadium electric steel, forged, multi stage oil-hardened

Specifications:

• Pliers: chrome-plated
• Head: chrome-plated
• Handles: insulated with multi-component grips, VDE-tested
• Dimensions: 140 x 54 x 25 mm
• Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
• Cutting capacities soft wire (diameter): 4.0 mm
• Cutting capacities medium hard wire (diameter): 2.5 mm
• Cutting capacities hard wire (diameter): 1.8 mm
• VDE tested: yes
• Weight: 0.160kg
