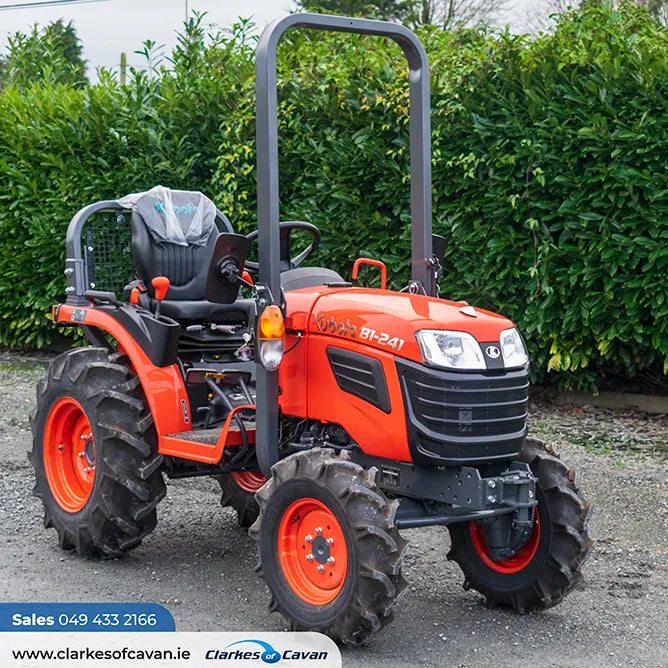

Kubota B1-241

Perfectly balanced power
The powerful diesel engines are characterised by high torque, smooth running, fuel efficiency, lower emissions and ease of maintenance.

Impressive pulling power
Thanks to standard four-wheel drive, the B1 Series compact tractors are also ideally equipped for rough terrain.

Relaxed working
The spacious operator’s platform with ergonomically arranged controls creates a pleasant working environment.

Wide range of applications
Thanks to the powerful rear and front lift, and 540 rpm (1.000 rpm on B1181) rear PTO, it is possible to use a wide range of implements.

Attractive options
Practical accessories extend the range of applications of the B1 Series compact tractors.

Engine
2- or 3-cylinder Kubota engines are available in four displacement sizes
High torque and low fuel consumption
Reduced emissions thanks to Kubota’s exclusive E-TVCS combustion system
Easily accessible air filter, radiator and dipstick facilitate regular maintenance

Transmission
Mechanical gearbox with six forward and two reverse gears (B1241: 9F/3R)
Standard engageable four-wheel drive (B1121: permanent four-wheel drive)
Maintenance-free portal front axle with double bevel gear drive and high ground clearance
Mechanical differential lock on the rear axle ensures excellent power transmission

Hydraulics
Category 1 rear power lift with powerful lifting capacity
Maximum rear lifting capacity of 430 kg (B1121), 540 kg (B1161, B1181) and 615 kg (B1241)
Optional front linkage with A-frame and independent 1000 rpm front PTO
B1181 and B1241 models feature hydraulic power steering as standard for easier manoeuvring

Options
The RCK48-16B-EC inter-axle mower is optionally available for the B1181 model
For the B1161 and B1181 models, the Kubota LA213 front loader is an optional extra
