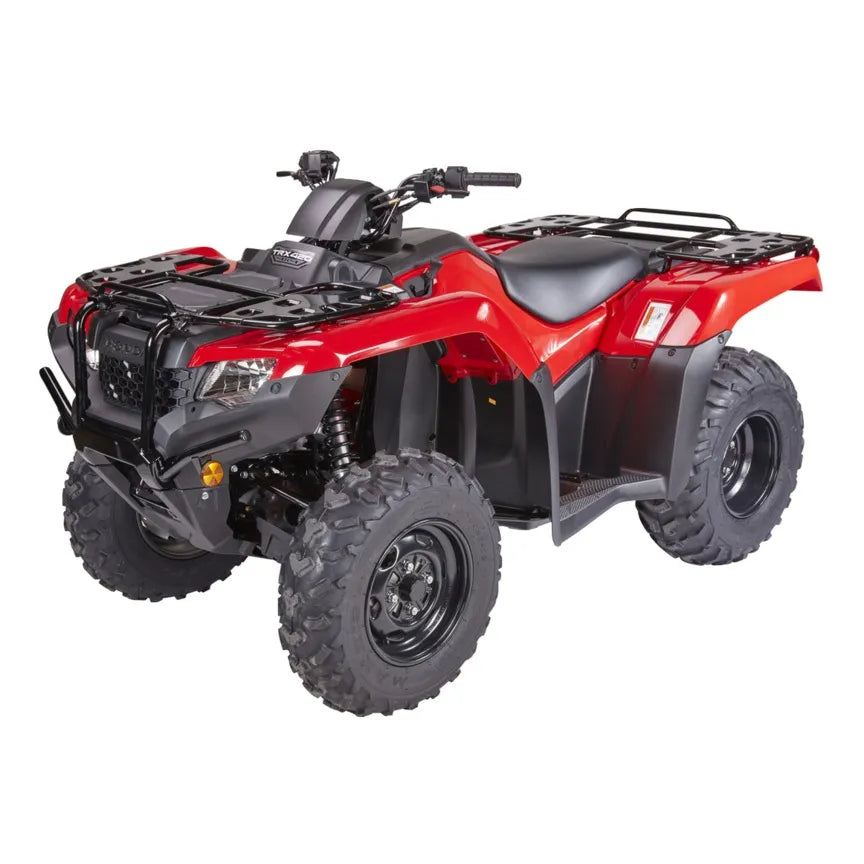

Honda TRX420FM

TRX420FM: Switchable 2/4wd, with 5 forward/1 reverse gear, auto clutch with manual shift.

The TRX420 is a true mid-size all-round ATV with class-leading power, performance and efficiency. Switchable 2/4wd, plus manual five-speed gearbox and automatic clutch. Engine: 420cc Fuel-injected liquid-cooled. Towing Capacity: 385kg

Features

Choose 2wd or 4wd
A choice of transmission models means there’s always a TRX420 to suit your needs.

Wide gear ratios
The working day can bring many challenges. Five forward gears, including an ultra-low first – plus reverse – mean you’ve got plenty of pulling power. An automatic clutch with a low engagement point gives fast, easy shifts and excellent towing ability; true engine braking also helps maintain control.

Trouble-free performance
A Keihin fuel injection system provides crisp performance and ensures trouble-free operation in cold conditions and changing altitudes. The large radiator and fan ensure optimal engine cooling under tough operating conditions.

Stopping power
With dual discs and hydraulic calipers up front and a rear-sealed mechanical drum brake, there’s plenty of stopping power. An easy-to-use parking brake locks the 420 in position.

Engine

The engine is longitudinally-mounted. With the crankshaft in line with the frame you get direct driveshaft alignment to the wheels, improved drivetrain efficiency and a low centre of gravity. And it’s a major contributor to great stability, handling and balance. All features you expect of a Honda ATV.

Tough with the Rough

Rugged frame and suspension provide up to 233mm of ground clearance. An axle-mounted heavy-duty trailer hitch with 385kg towing capacity is installed as standard equipment, providing complete versatility.

Independent double-wishbone front suspension with 185mm travel soaks up anything in the way – aiding rider comfort and all the while keeping steering precise.

Difference in the detail

It’s Honda’s careful attention to detail that sets our ATVs apart from the rest.

• Large fuel tank: With reserve – allows you to go long distances without having to refill.
• Air filter: Large 7.2-litre airbox and a washable/reusable foam air filter provide increased airflow to the engine, for increased performance and easy maintenance.
• Air-intake system: Snorkel-type air-intake system is specially designed to resist water ingestion.
• Cargo racks: Steel cargo racks front and rear haul loads of 30kg and 60kg respectively.
• Trailer hitch: Axle-mounted, heavy-duty trailer hitch with 385kg towing capacity.
• Floorboards: Unique floorboards allow the rider’s feet to grip the footrests while keeping away from mud and debris.
• Headlights: Twin-headlights with 30-Watt bulbs feature multi-reflector lenses.
