Kubota 1G686-53710 Injection Pipe - OEM Fuel Line for Z482 Engine Series
Kubota 1G686-53710 Injection Pipe - OEM Fuel Line for Z482 Engine Series is backordered and will ship as soon as it is back in stock.
Notify Me
Simply enter your email address and we will notify you when this product is back in stock
Pickup available at Moynehall Retail Park
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
Return Policy
Return Policy
We offer an exchange or refund on goods purchased online, and returned 14 days after purchase.
Description
Description

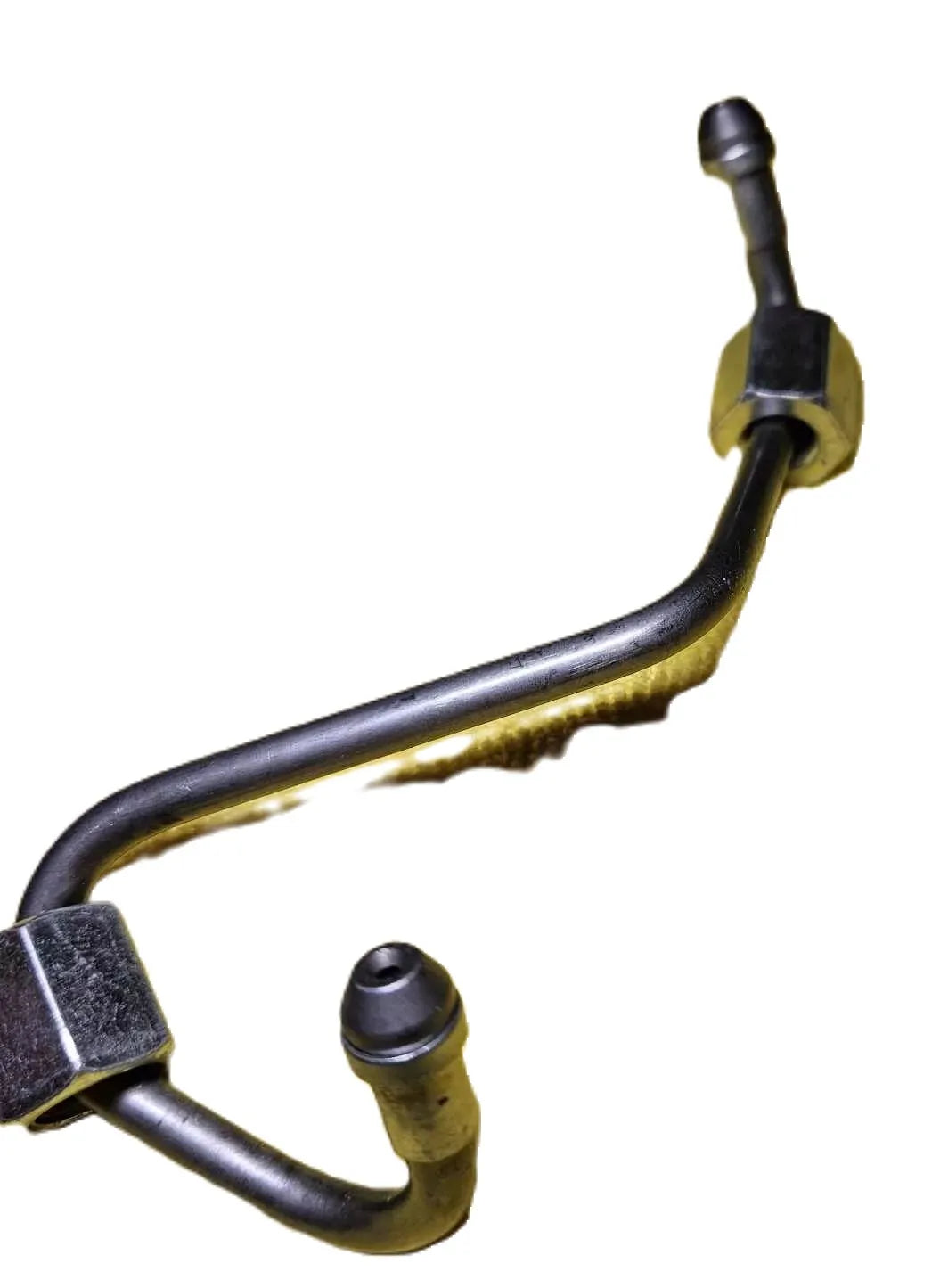

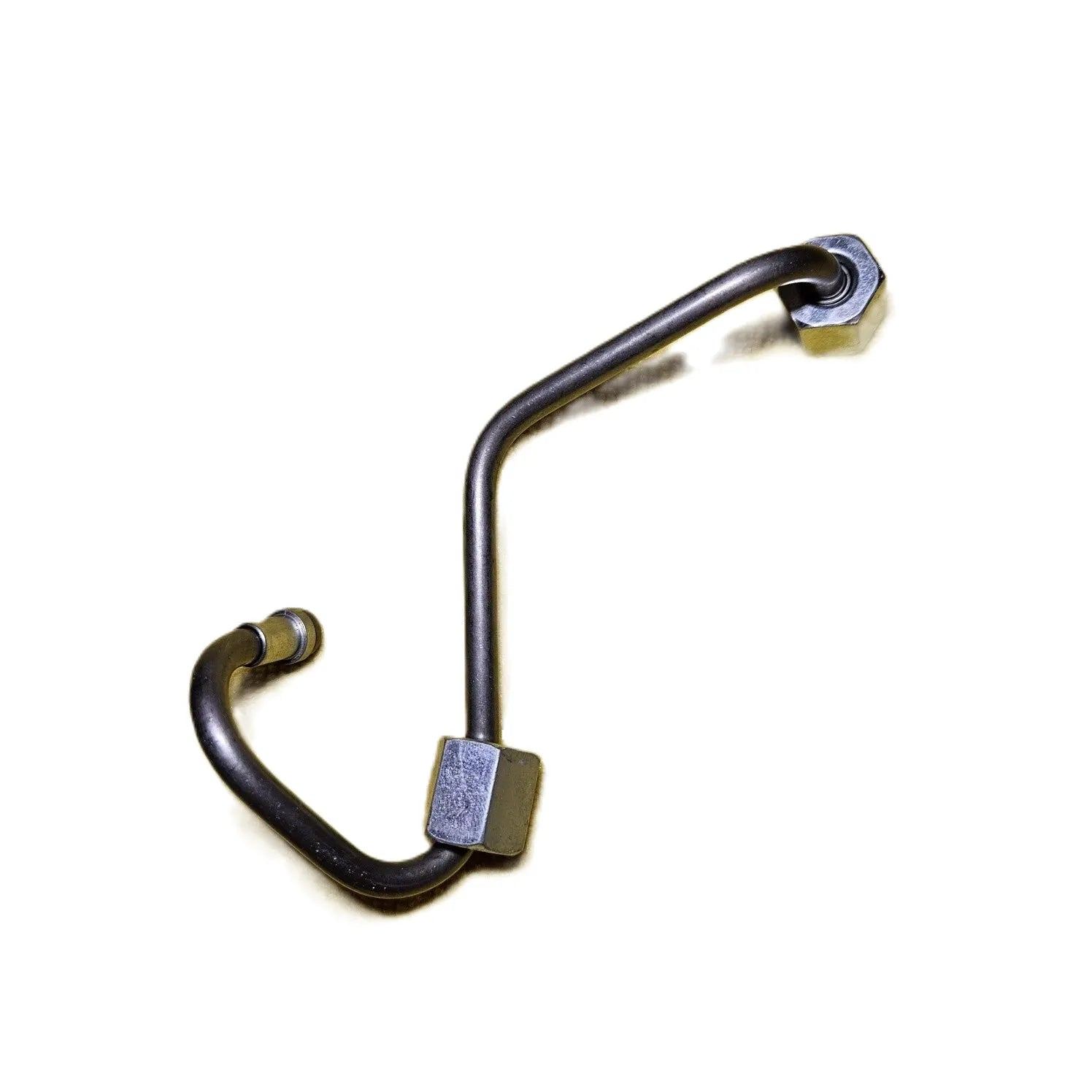

The Kubota 1G686-53710 injection pipe is a genuine OEM fuel line designed to precisely deliver diesel from the injection pump to the nozzle. It is specifically built to fit Kubota engines and is commonly used in compact equipment powered by the Z482 diesel engine.
Key Features:
High-pressure fuel line for Kubota diesel engines
Ensures consistent fuel injection performance
OEM-grade material for long service life
Precision-engineered for leak-proof fit
Compatible Models:
Tractors & Ride-On Mowers:
BX Series: BX1850D, BX1860, BX1870, BX1870-1, BX1880, BX1880-AU
GR Series: GR2120, GR2120AU, GR2120AU-2, GR2120-2, GR2120B, GR2120B-2
GF Series: GF1800, GF1800E, GF1800E-R-2, GF1800-R-2
Excavators:
K008-3 (All variants: KTA, KTC, KCL, SUNBELT)
(Note: use proper REF No. depending on serial range)
Generators:
GL Series: GL6000-STD (50HZ), GL9000-STD (50HZ), GL11000-USA, GL11000-CAN
Zero-Turn Mowers:
ZD Series: ZD1011-AU, ZD221-AU
Engines:
KC120HC: Z482-E3B / Z482-E4B configurations (varies by serial number)
Important Notes:

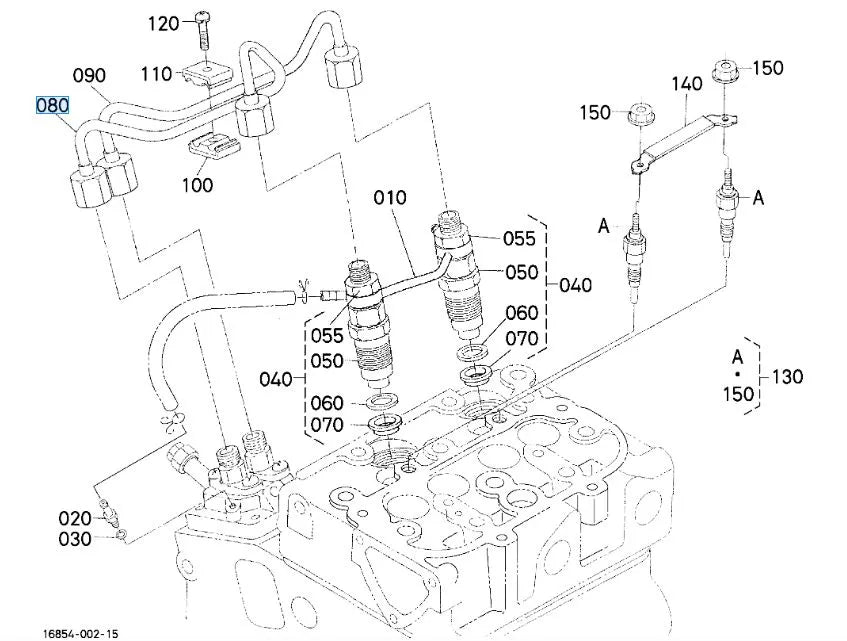

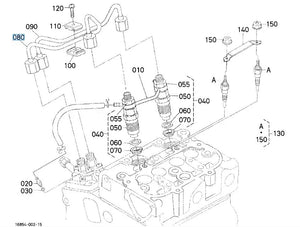

For certain models like K008-3, this pipe is used in both early and later engine configurations. Check FIG No. 020601 and REF No. 060/065 for correct set ordering.
Always verify fitment against your machine’s serial number before ordering.
