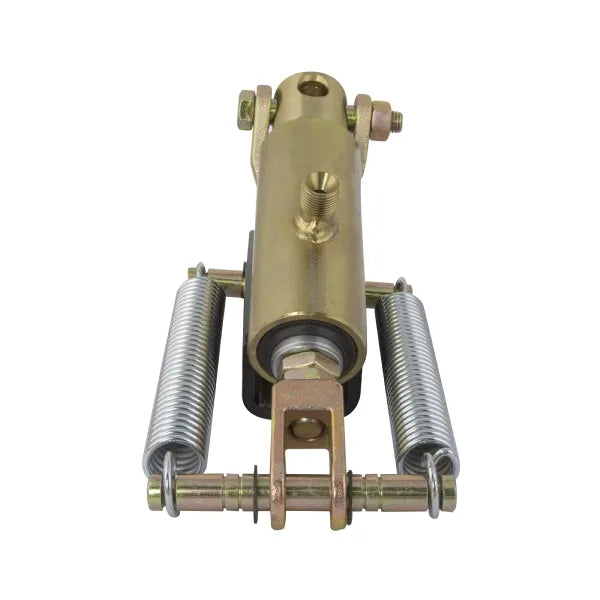

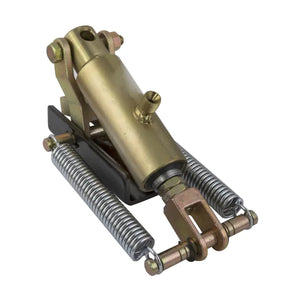

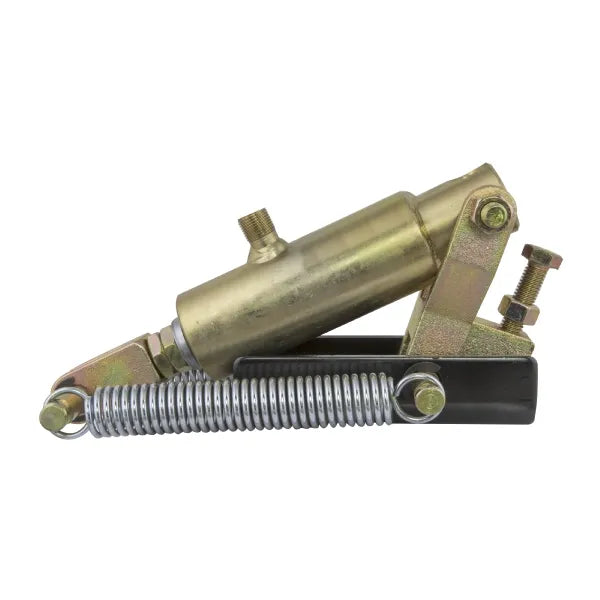

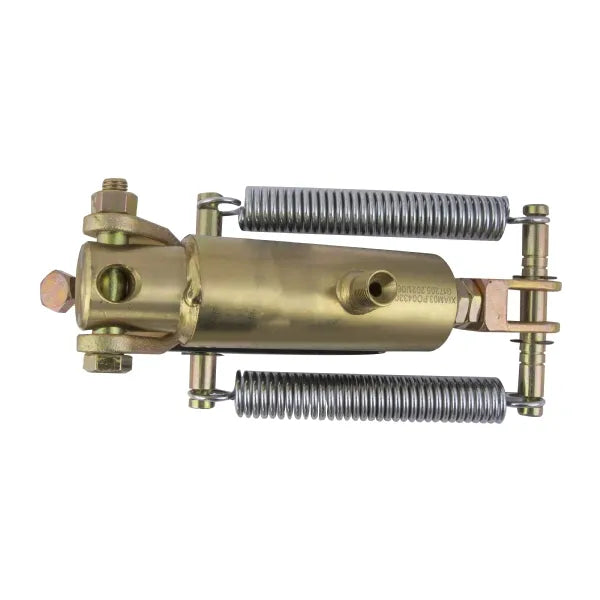

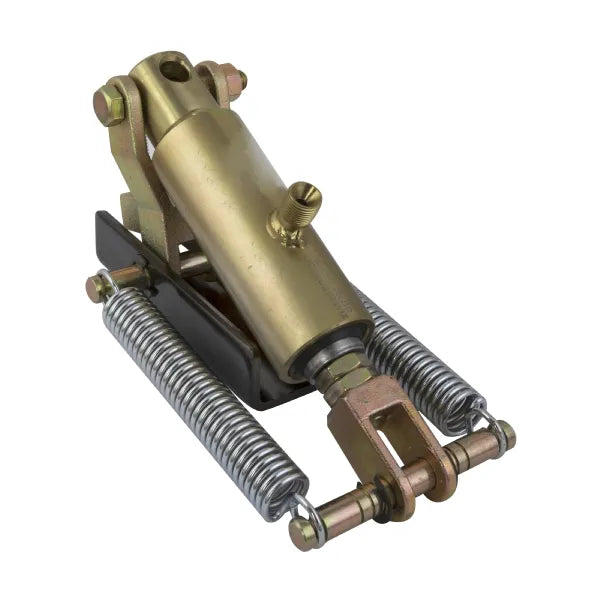

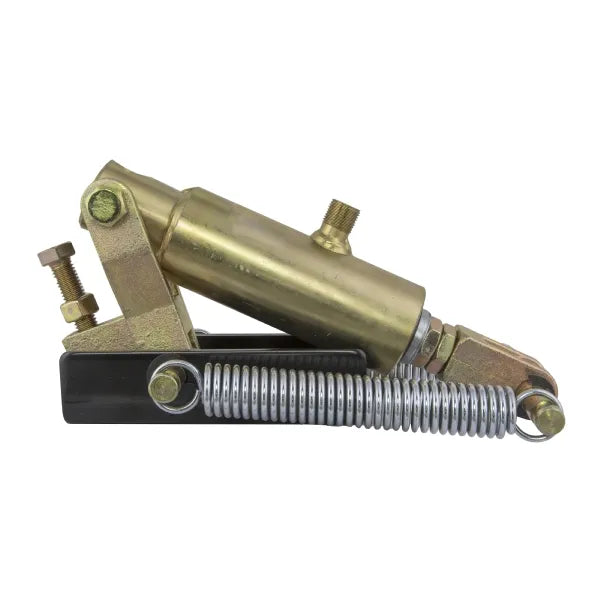

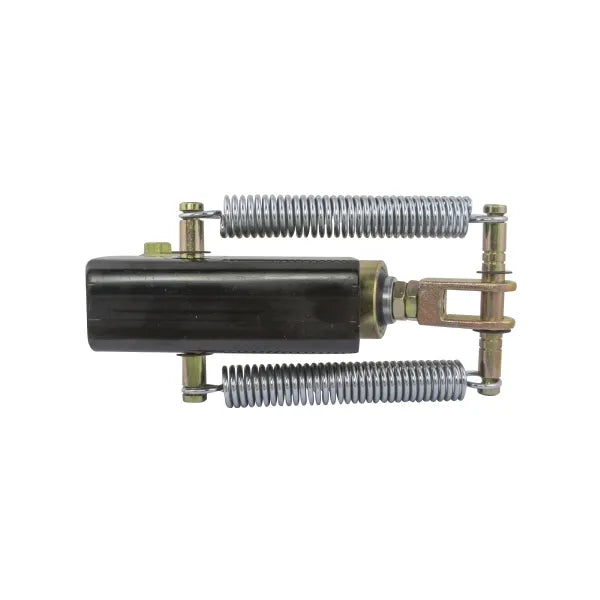

G17205 30mm Hydraulic Brake Ram – Double Spring Weld-On Assembly
The G17205 Genfitt brake ram assembly is a heavy-duty single-acting hydraulic brake cylinder designed specifically for agricultural trailers. Featuring a 30mm rod and double external return springs, this ram delivers reliable braking force and smooth retraction under pressure.
The assembly includes a channel iron mounting frame and is designed for weld-on installation. Built for high-pressure performance, it operates at up to 150 bar and uses a 3/8in BSP hydraulic port. Its compact, efficient design ensures dependable braking in tough farming environments.
Key Features:
Double Spring Return: Provides reliable retraction after actuation.
30mm Rod Diameter: Ideal for high-pressure trailer braking applications.
Weld-On Fit: Mounts securely using included channel iron frame.
3/8in BSP Port: Standard hydraulic connection for ease of integration.
Durable Build: Designed to withstand agricultural field conditions.
Specifications Table:
| Feature | Specification |
|---|---|
| Product Code | G17205 |
| Type | Single Acting Hydraulic Brake Ram |
| Return Mechanism | Double External Springs |
| Rod Diameter | 30mm |
| Barrel Outer Ø | 50mm |
| Stroke | 75mm |
| Closed Centre | 211mm |
| Port Size | 3/8in BSP |
| Pin Hole | 14mm |
| Max Pressure | 150 Bar |
| Weight | 1.001kg |
| Mount Type | Weld-On |
