Description
Description
Rugged Brake Ram for Agricultural Trailers

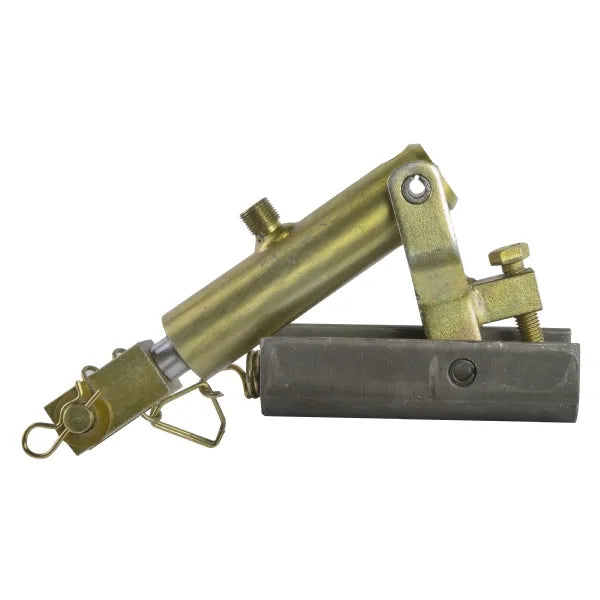

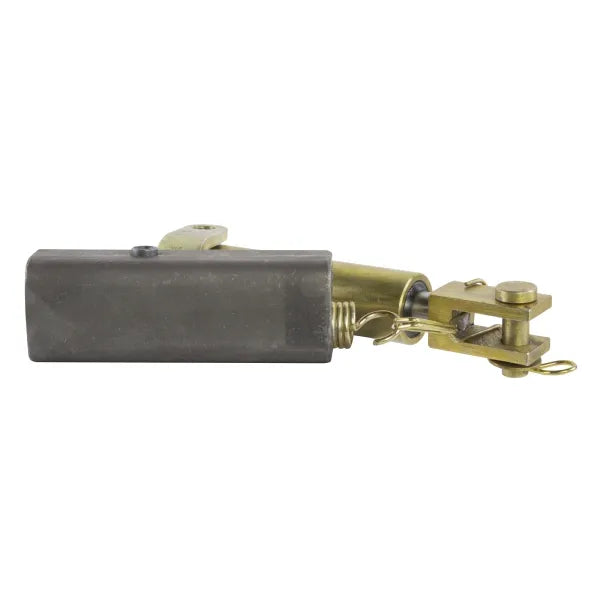

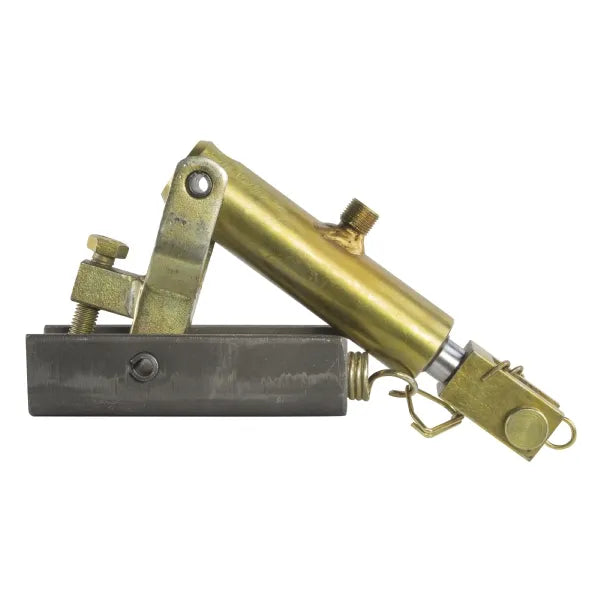

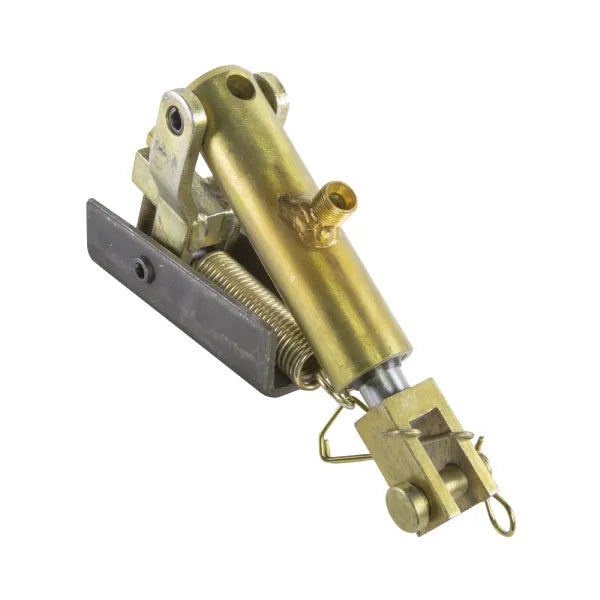

The Genfitt G3939 single spring brake ram is engineered for reliable hydraulic braking on agricultural trailers. With a 20mm rod diameter and durable construction, this weld-on brake cylinder includes a channel iron frame and an external return spring for effective single-acting operation.
Built for Demanding Use
With a stroke of 75mm and a working pressure of 150 bar, this brake ram ensures solid braking performance under load. Its 3/8" BSP port and compact mounting dimensions make it easy to integrate into trailer braking systems.
Key Features
Single Acting Hydraulic Cylinder: Efficient braking with external return spring
20mm Rod Diameter: Standard size for agricultural use
150 Bar Pressure Rating: Designed for heavy-duty performance
Weld-On Design: Secure and stable fit to trailer frame
Complete Assembly: Supplied with channel frame and spring
Specifications
Model: G3939
Rod Diameter: 20mm
Stroke: 75mm
Closed Centre Length: 190mm
Barrel Diameter: 38mm
Working Pressure: 150 Bar
Port: 3/8" BSP
Mounting Channel: 150mm (L) x 70mm (W) x 40mm (H) x 6mm (T)
Pin Hole: 14mm
Weight: 5kg
