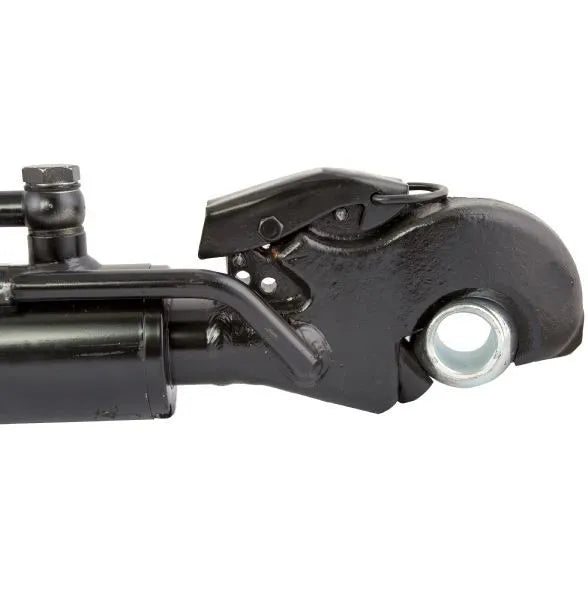

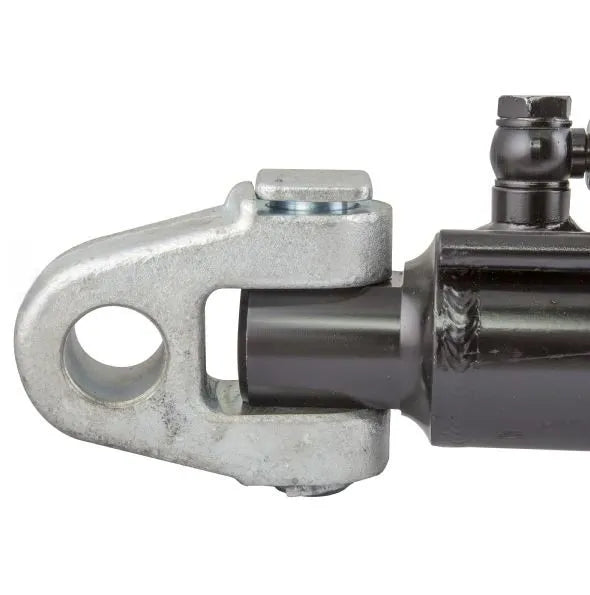

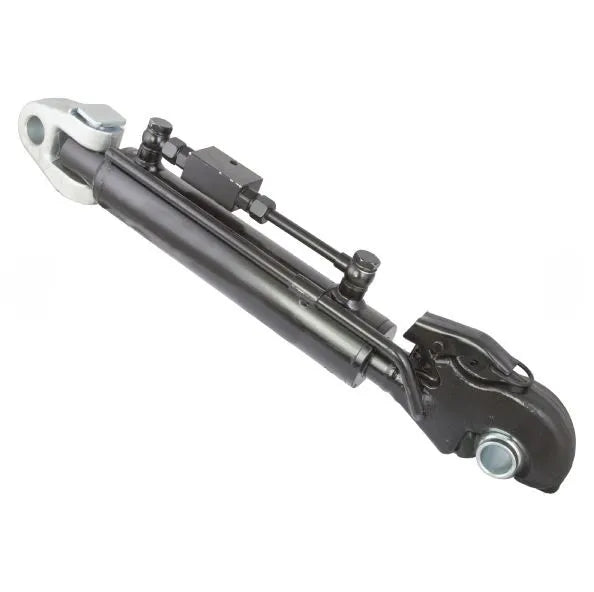

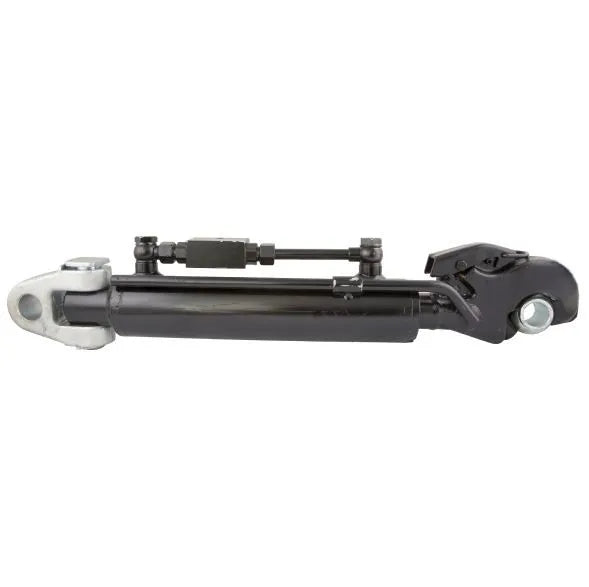

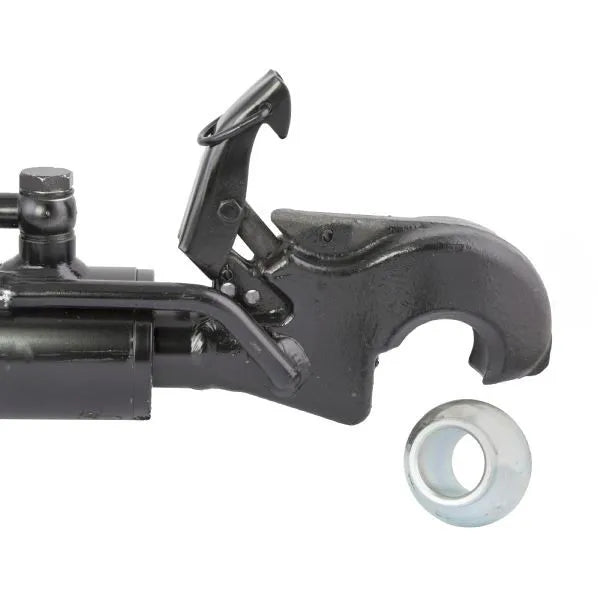

G19932 - Hydraulic Top Link 22in with Anti Creep & Knuckle 28.5mm x C2
Finance Options
1/3
Product Highlights
- Heavy-duty hydraulic top link with anti-creep safety device
- 28.5mm knuckle eye on fixed end, 25.4mm quick attach ball on rod end
- Maximum load capacity of 1,100kg
- Durable barrel with 60mm inner and 70mm outer diameter
G19932 - Hydraulic Top Link 22in with Anti Creep & Knuckle 28.5mm x C2 is backordered and will ship as soon as it is back in stock.
Notify Me
Simply enter your email address and we will notify you when this product is back in stock
Pickup currently unavailable at Moynehall Retail Park
Delivery and Shipping
Delivery and Shipping
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
Return Policy
Return Policy
We offer an exchange or refund on goods purchased online, and returned 14 days after purchase.
G19932 - Hydraulic Top Link 22in with Anti Creep & Knuckle 28.5mm x C2 is backordered and will ship as soon as it is back in stock.
Description
Description
The G19932 Hydraulic Top Link 22in with Anti Creep & Knuckle is a Genfitt standard knuckle hydraulic top link designed to deliver outstanding performance in agricultural and industrial settings. Equipped with an anti-creep safety device, this top link prevents accidents or equipment damage in the event of a hydraulic hose burst, providing extra peace of mind during operation. Its heavy-duty construction, featuring a 28.5mm knuckle eye on the fixed end and a quick attach ball on the rod end, ensures durability and ease of use.
With a barrel diameter of 60mm (inner) and 70mm (outer), this top link offers superior strength and stability. The open center measures 765mm (30in) and the closed center measures 560mm (22in), making it suitable for a variety of machinery and applications. Finished with a black primer, this hydraulic top link is built to withstand tough conditions and resist corrosion.
Key Specifications:
- Model: G19932
- Barrel Diameter: 60mm inner, 70mm outer
- Open Center Length: 765mm (30in)
- Closed Center Length: 560mm (22in)
- Maximum Load: 1,100kg
- End Type 1: 28.5mm knuckle eye
- End Type 2: 25.4mm quick attach ball
- Rod Diameter: 40mm
- Weight: 11.5kg
- Finish: Black primer
Features:
- Anti-Creep Safety Device: Prevents damage or injury in case of hose failure by preventing the cylinder from creeping under load.
- Knuckle Eye on Fixed End: 28.5mm knuckle eye for a secure connection.
- Quick Attach Ball on Rod End: 25.4mm quick attach ball for ease of use and fast adjustments.
- Durable Construction: Heavy-duty barrel and rod made for extreme conditions, with a black primer finish to resist corrosion.
- High Load Capacity: Capable of supporting up to 1,100kg, making it suitable for demanding tasks.
Applications:
- Agricultural Equipment: Ideal for tractors and other agricultural machinery where heavy-duty hydraulic top links are needed.
- Industrial Machinery: Suitable for use in a variety of industrial settings requiring reliable hydraulic components.
- Construction Equipment: Can be used in construction machinery for lifting and adjusting implements.
